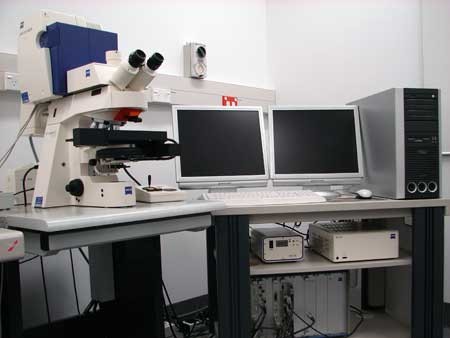

Zeiss LSM 510 META confocal microscope

Owned by the Liggins Institute but available to all users

This microscope is housed within the Biomedical Imaging Research Unit. Full training and support is provided by BIRU staff.

Read more about the Liggins Institute

Specifications

nrcgd_zeiss-lsm510-confocal
  • Lasers: UV (351nm, 364nm), Argon (458nm, 488nm, 515nm), Helium-Neon (543nm, 633nm)
  • AOTF excitation control
  • Excitation wavelengths: 458, 488, 515, 543 and 633nm
  • Modes: xy, xyz, xz, xt, xyt, lambda
  • Detectors: 3 filter-based, 1 spectral (META) and one transmitted light
  • Spectral unmixing
  • Resolution: up to 2048 x 2048 pixel resolution
  • Objectives: Dry (10x, 20x), Oil (40x, 63x, 100x)
  • Motorised XY stage: tile scanning
  • Fully motorised microscope stand
  • Microscope filters: DAPI, FITC, TRITC

Room extension number

83408
